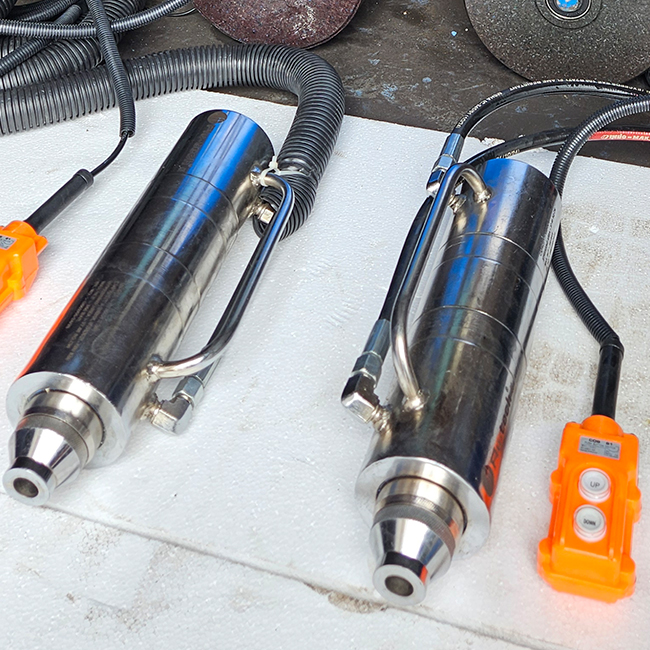

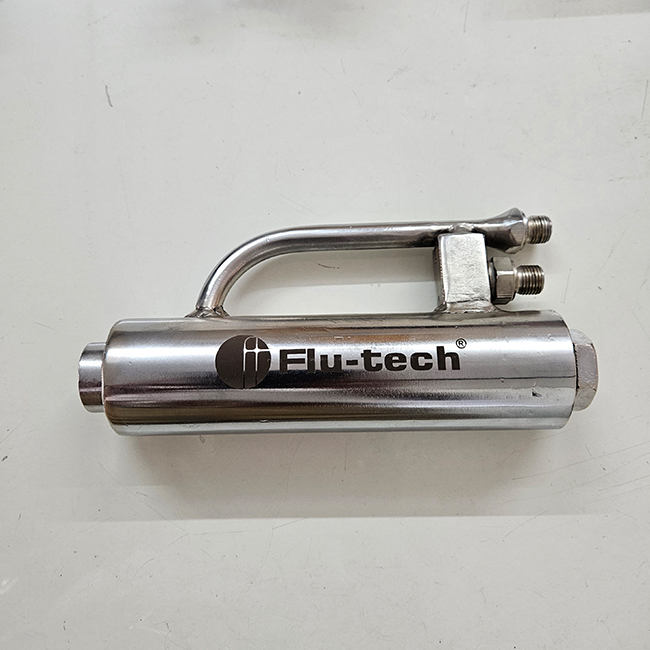

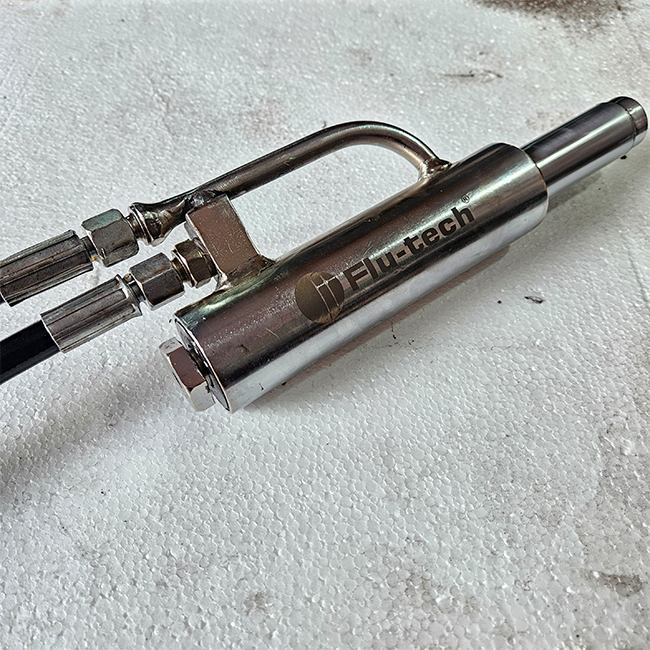

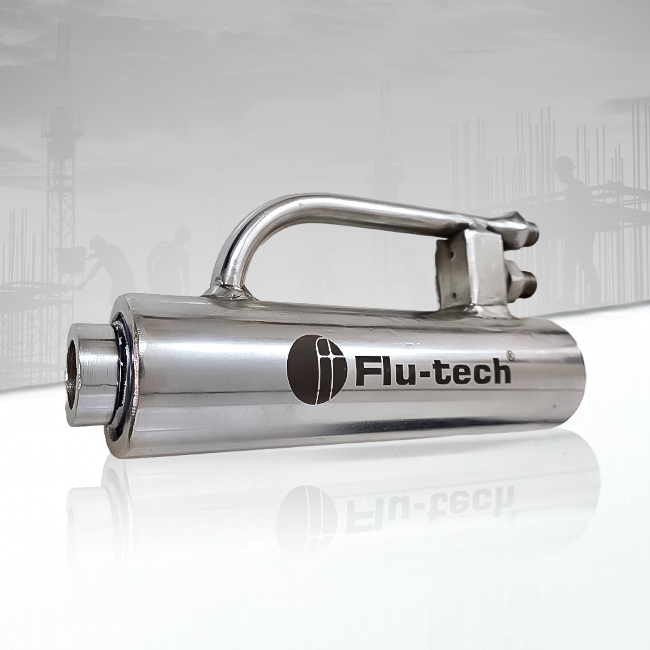

Mini Hydraulic Prestressing Gun / Jack ( Single Guided)
description
A compact yet powerful tool for light-duty tensioning tasks, offering ease of handling and precision. It is ideal for small projects or tight spaces, where portability and performance are equally important. Despite its size, the gun ensures accurate force application and long-lasting results.
Additional Information:
- Mini Hydraulic Prestressing Jack / Gun for Initial wire stressing
- Low Weight
- Easy Handling
* Customization of Gun Stroke & Force Capacity is also available
Technical Specification of Mini Hydraulic Prestressing Gun / Jack (Single Guided Gun type)
| For Wire Dia. | Max. Stressing Force capacity | Stressing Stroke | Model |
|---|---|---|---|
| 3mm/4mm/5mm | 11KN | 75mm | G-11x75-E |
| 3mm/4mm/5mm | 11KN | 150mm | G-11x150-E |
| 6.3mm/7mm/8mm/12.7mm/12.9mm/15.2mm | 130KN | 200mm | G-130x200-E |
| 6.3mm/7mm/8mm/12.7mm/12.9mm/15.2mm | 130KN | 300mm | G-130x300-E |
