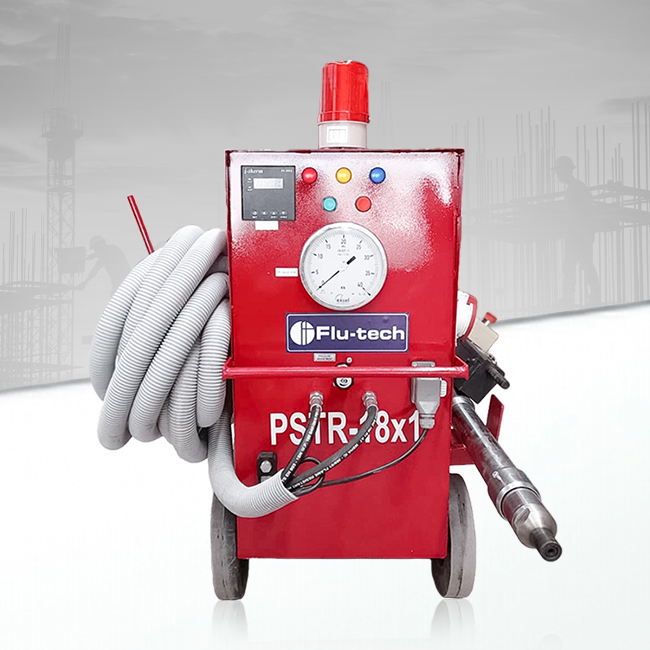

Single Station Hydraulic Prestressing Unit (Double Guided Gun Type) – With Digital Force Read Out Meter & Warning Alarm

Prev
Next

description

A single-point tensioning unit equipped with advanced digital controls for precise force application and real-time monitoring.

It ensures consistent prestressing with easy adjustments, making it ideal for projects requiring accuracy. This system reduces human error, providing better control over the process.

Additional Information:

  • Double Guided type GUN for better strength in guide during working and long life of working
  • Push Pull operation by electrical push buttons provided on gun
  • Digital meter for force reading in KN and Analogue Pressure Gauge for reading out in Bar
  • Auto cut-off of stressing as per set value in Digital meter with the accuracy of 0.99 digit
  • All electrical operation on single operator panel inside the cover. These include motor start-stop, push pull, digital meter, and buzzer to read force, MCB, Contactor, Relay etc.
  • Transformer for extra safety of SMPS by any Electric imbalance jerks
  • Accurate and similar stressing of each wires.
  • Easy and accurate inspection of wire tensioning procedure
  • Complete power pack on wheels, with hood for covering motor, valves and other all hydraulic and electric parts
  • With 10mtr hose pipes and cable including safety cover (conduit) pipe
  • Easy Handling & Fast Production
  • Less Labour

Customization of Gun Stroke & Force Capacity is also available.

Technical Specification of Single Station Hydraulic Prestressing unit (Double Guided Gun type) - Digital

For Wire Dia. Max. Stressing Force capacity Stressing Stroke Motor Power Model
3mm/4mm/5mm 21KN 200mm 0.75KW PSTR-21x1x200
3mm/4mm/5mm 21KN 350mm 0.75KW PSTR-21x1x350
3mm/4mm/5mm 21KN 450mm 0.75KW PSTR-21x1x450
3mm/4mm/5mm 21KN 600mm 0.75KW PSTR-21x1x600
5mm/6.3mm/7mm/8mm 36KN 200mm 1.5KW PSTR-36x1x200
5mm/6.3mm/7mm/8mm 36KN 350mm 1.5KW PSTR-36x1x350
5mm/6.3mm/7mm/8mm 36KN 450mm 1.5KW PSTR-36x1x450
5mm/6.3mm/7mm/8mm 36KN 600mm 1.5KW PSTR-36x1x600
7mm/8mm 50KN 200mm 1.5KW PSTR-50x1x200
7mm/8mm 50KN 350mm 1.5KW PSTR-50x1x350
7mm/8mm 50KN 450mm 1.5KW PSTR-50x1x450
7mm/8mm 50KN 600mm 1.5KW PSTR-50x1x600
9.3mm/9.5mm/12.7mm/12.9mm/15.2mm 300KN 200mm 2.2KW PSTR-300x1x200
9.3mm/9.5mm/12.7mm/12.9mm/15.2mm 300KN 350mm 2.2KW PSTR-300x1x350
9.3mm/9.5mm/12.7mm/12.9mm/15.2mm 300KN 600mm 2.2KW PSTR-300x1x600
